MAST ARCHER WIRELESS PMU PEN MACHINE - 5STAR EDITION

• Innovative 3-Mode System: Toggle seamlessly between Normal Voltage Mode, Frequency Mode (1–199), and a dedicated Dot work Mode (Levels 1–9) to perfectly match your advanced techniques.

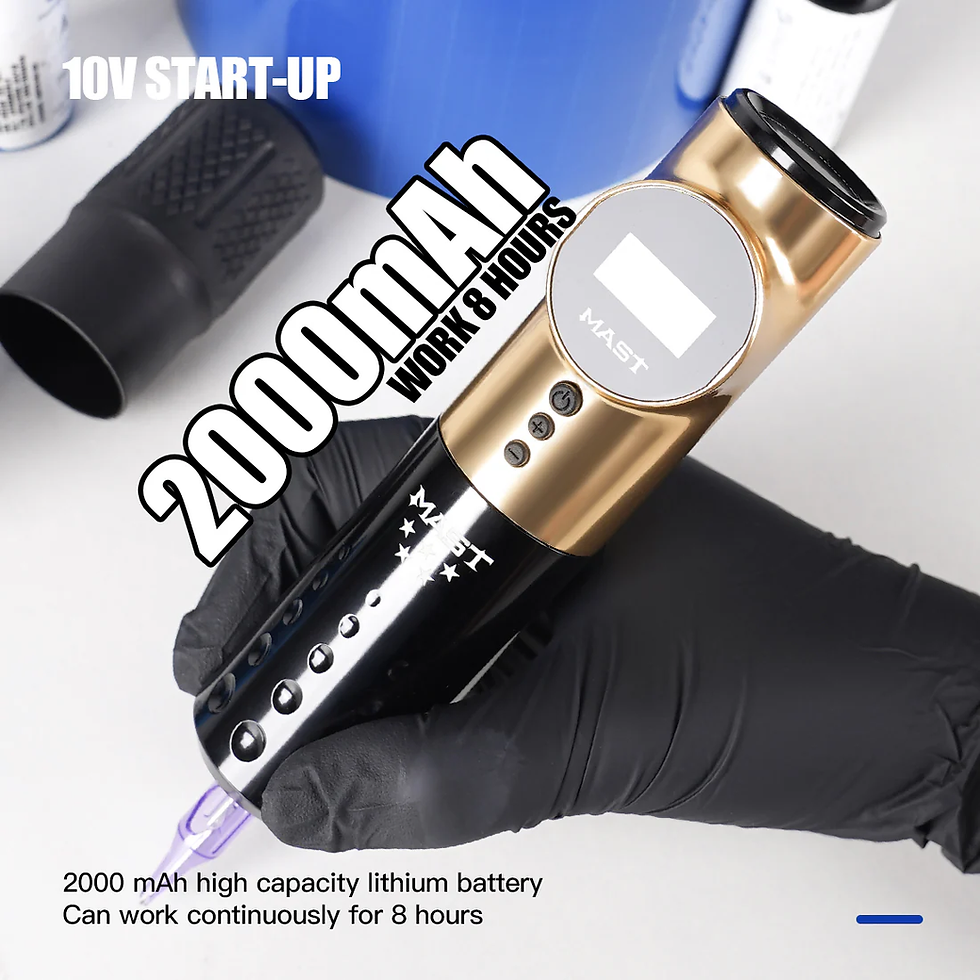

• Massive Battery Life: The built-in 2000mAh high-capacity battery delivers up to 8 hours of continuous, cordless runtime with a rapid 2-hour full charge cycle.
• Direct Drive Power: Features a custom direct motor operating at a powerful 10,500 RPM (at 12V), ensuring consistent, reliable hits without bogging down.
• Autoclavable Grips: Includes two additional textured grips. They are incredibly easy to swap and completely safe to sterilize in an autoclave for strict studio hygiene.
• Universal Compatibility: The universally designed receiver flawlessly accepts all standard twist-and-lock tattoo needle cartridges on the market.
• High-Visibility LCD Screen: The sleek digital display provides real-time readouts of your adjustable voltage, running time, and remaining battery capacity.

• Brand: Mast Tattoo
• Model: Archer Pro (5 Star Series)
• Motor Type: Direct Motor
• Machine Weight: 192g
• Dimensions: 32mm (Diameter) x 132mm (Length)
• Stroke Length: 3.5 mm
• Operating Speed: 10,500 RPM (at 12V)
• Working Voltage Range: 5.0V – 12.0V
• Battery Capacity: 2000mAh
• Operating Modes: Normal Mode (Voltage), Frequency Mode (1-199), Dot Mode (1-9 levels)
• Charging Time: 2 Hours

Working Time: Up to 8 Hours

The complete Mast Archer Pro 5 Star Kit includes:

• 1 x Mast Archer Pro 5 Star Series Wireless Tattoo Machine
• 2 x Extra Replaceable Grips (Textured for maximum control)
• 1 x Fast-Charge USB Cable
• 1 x Premium Mast Storage Box

Step-by-Step Operating Interface Guide:

• Powering On/Off: Short press the primary power button to turn the machine on. Long press the button to turn it off.
• Start & Pause: While powered on, short press the power button once to run the motor, and press again to pause.
• Switching Modes: Double-click the power button rapidly to cycle between the three operating modes (Normal, Frequency, Dot Mode).
• Normal Mode (Voltage): Short press the (+) or (-) buttons to adjust your running voltage by increments of 0.1V.
• Frequency Mode: Short press the (+) or (-) buttons to adjust the frequency level by 1. Long press the buttons to adjust in larger jumps of 10. (Note: If no buttons are pressed for 5 seconds, the screen will automatically revert to displaying your voltage).
• Dot Mode: Press the (+) or (-) buttons to select your dotting speed from levels 1 through 9. (Note: Returns to the voltage display if idle for 5 seconds).
• Needle Adjustment: Simply rotate the grip section clockwise or counter-clockwise to fine-tune your needle depth.

• Q: What style of tattooing is the Archer Pro 5 Star best suited for?
  • A: Thanks to its versatile 3.5mm stroke and unique stainless-steel spring mechanism, it is a true all-rounder. It delivers the exact force needed for solid lines and color packing, while remaining soft enough for smooth shading and hyper-realistic black-and-gray work.
• Q: Can the machine be safely bagged during the tattoo process?
  • A: Yes. The machine features a completely seamless frame that protects the internal motor and battery. It is designed to be easily wiped down and seamlessly covered with standard pen machine barrier bags.
• Q: Are all the included grips safe for the autoclave?
  • A: Yes, the grips are structurally designed to withstand high-heat sterilization in an autoclave, allowing you to maintain peak cross-contamination safety between clients.
